RCMC-PALL, the compact automatic palletizing system
RCMC-PALL is the compact CMC Impianti palletizing machine, designed around the collaborative robot to fit in small spaces and integrate into existing lines without invasive interventions. It was created to ensure maximum ease and flexibility of use, relieving operators of repetitive, non-ergonomic, and exhausting tasks.
Compact design
Reduced footprint compared to a traditional palletizing cell: RCMC-PALL fits even at the end of a line with limited space, without the need to reorganize the layout.
Easy to install
No complex masonry work: the system is positioned and connected quickly, reducing production downtime related to commissioning.
Simple to program
The graphic interface is intuitive and immediate: it allows setting up a new pallet in just a few steps, even for operators with less robotics experience.
Low operating costs and fast ROI
Low operating costs and fast ROI
Flexible and easy to move
RCMC-PALL moves from one line to another in a short time, following production where needed, without tying up capital in a single station.
Add description

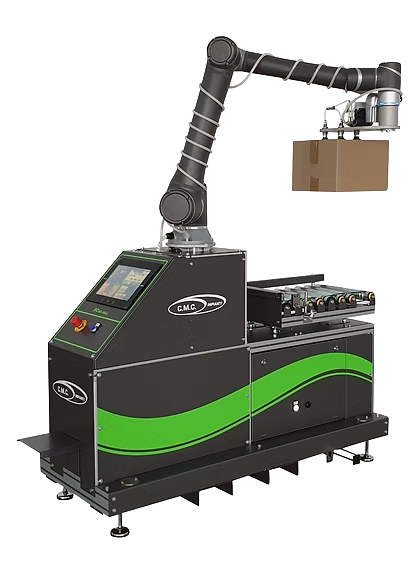

RCMC-PALL integrates an infeed roller conveyor into its structure, controlled directly by the on-board electrical panel: a single system to install, with no separate components to coordinate.
The high safety standards of collaborative robots (cobots) allow RCMC-PALL to be used alongside personnel without fixed safety barriers.
| Feature | Value |
|---|---|
| Lifting capacity* | up to 8 kg |
| Pallets** | 800 x 1200 mm and 1000 x 1200 mm |
| Palletizing height** | 2100 mm |
| Production** | up to 8 prod/min |
| Dimensions (LxWxH) | 700 x 1600 x 1800 mm |
| Weight | 50 kg |
* depends on the gripper used
** depends on the product dimensions
Technical data may vary at the manufacturer's discretion even without notice
